• Voltmeter Switch

    โวลต์มิเตอร์สวิทช์

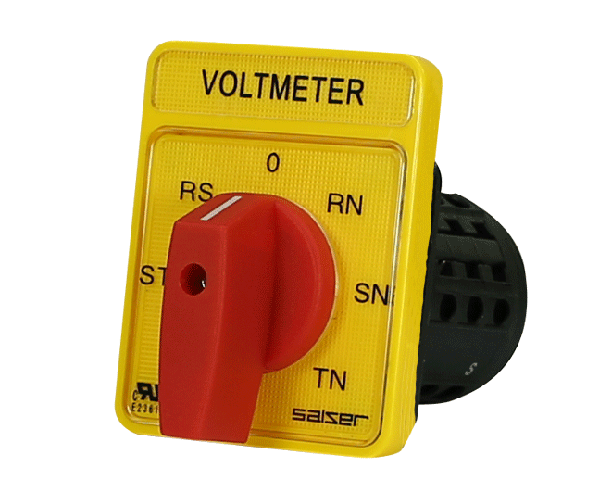

    Voltmeter Switch - Heavy Duty SA16-7-3
    มีให้เลือกใช้ 2 ขนาด 48x60mm และ 64x80mm

  • SPECIFICATION
    Example Model : SA16-7-3
     • Front Protection   : IP65
     • Operation Temperature : -25°C to 55°C
     • Rated Uninterruption Current : 20A
     • Rated Operation Current : 16A
     • Frequency : up to 10 KHz
     • Duty Rating   : 60% / 40% / 25%E.D.:1.3/1.6/2.0
     • Max.life        : up to 3 million switching operations
     • Max.switching Cycle : 300 operations/hour
     • Contacts : Double break type Ag/AgNi/AgCdO
     • Standard : DIN57-660/I/DE0660

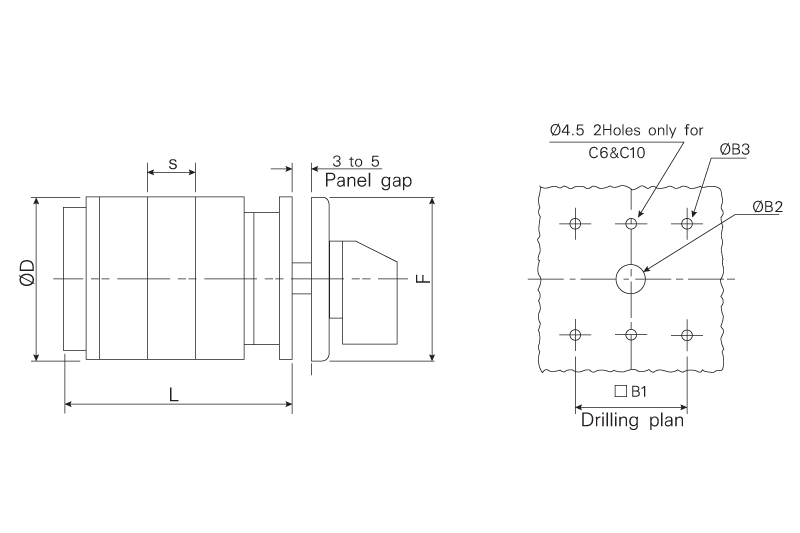

  • DIMENSION
    Example Model : SA16-7-3
